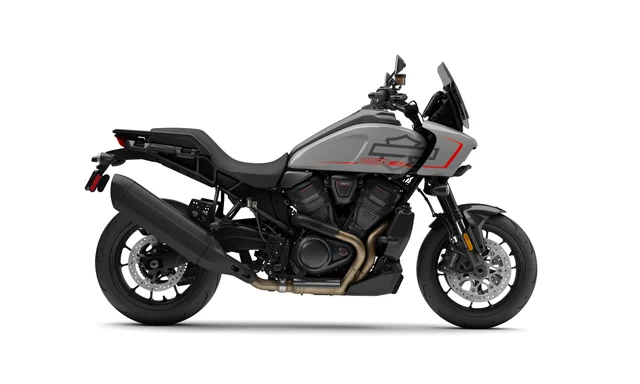

Harley Davidson 2025 Pan America® 1250 ST - Billiard Gray
Harley Davidson 2025 Pan America® 1250 ST - Vivid Black

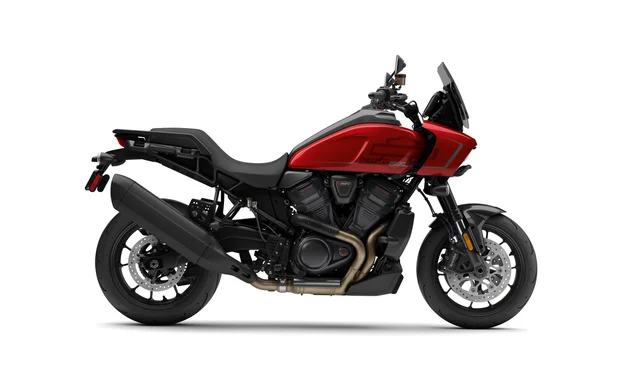

Harley Davidson 2025 Pan America® 1250 ST - Brilliant Red

2025 Pan America® 1250 ST

Book A Test Ride
Request Details

DESCRIPTION

2025 Harley-Davidson® Pan America® 1250 ST, Sport Touring & Reimagined

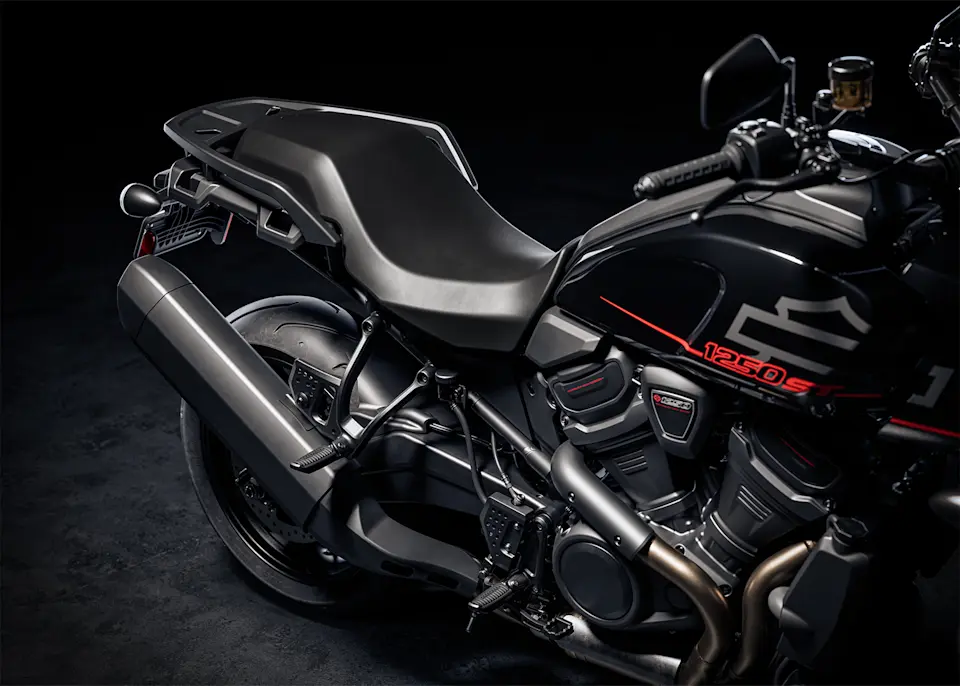

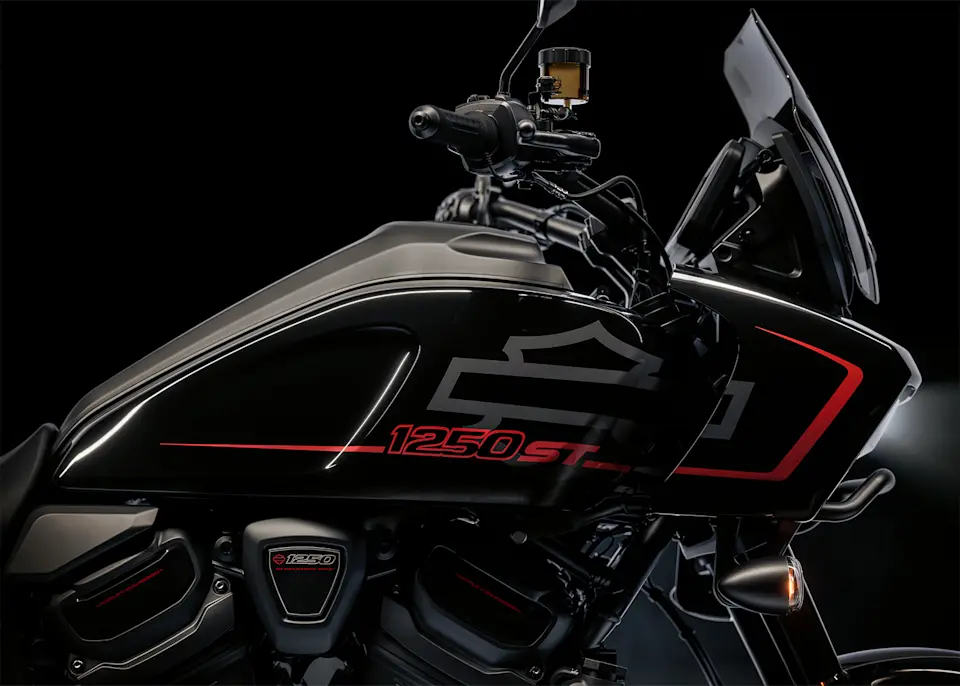

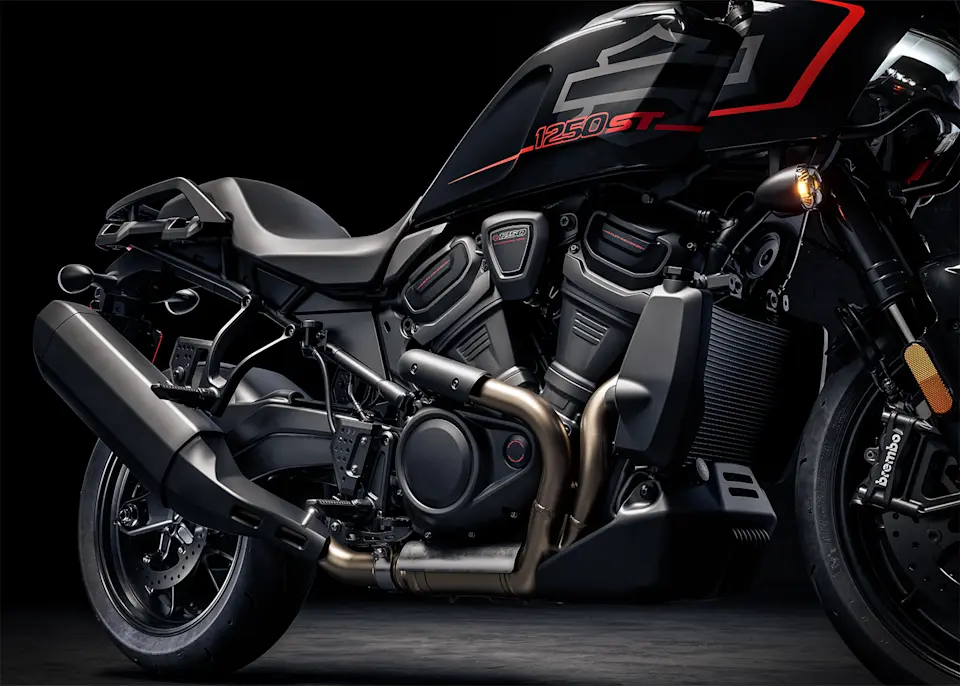

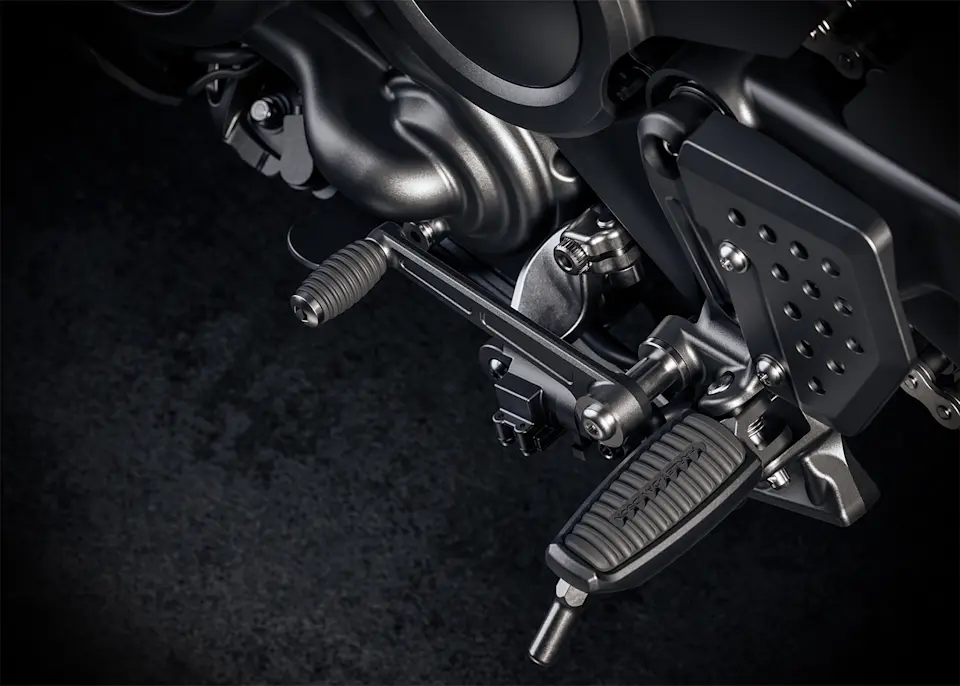

The 2025 Harley-Davidson® Pan America® 1250 ST redefines sport touring with a performance-focused design built for everyday thrill seekers. Powered by the Revolution® Max 1250 engine delivering 150 horsepower, it combines agile handling, lowered suspension, and 17-inch Michelin® Scorcher® tyres for a smooth, responsive ride. A slimmer profile, quickshifter, and one-piece supportive seat enhance comfort and control, whether carving corners or commuting. Advanced tech includes five ride modes, Cornering ABS, Traction Control, and a 6.8-inch TFT touchscreen with Bluetooth® connectivity. Request a quote today and discover the street-tuned spirit of Harley-Davidson adventure.

DISCLAIMER

Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

SPECIFICATION

Length
2,240.3 mm
Width
896.6 mm
Ground Clearance
170.2 mm
Rake
25
Trail
94.0 mm
Wheelbase
1,570.7 mm
Tire, Type"
Michelin®Scorcher "Sport"
Tires, Front Specification
120/70ZR17 58W
Tires, Rear Specification
180/55ZR17 73W
Fuel Capacity
21.2 L
Oil Capacity (w/filter)
4.49 L
Weight, In Running Order
245.8 kg

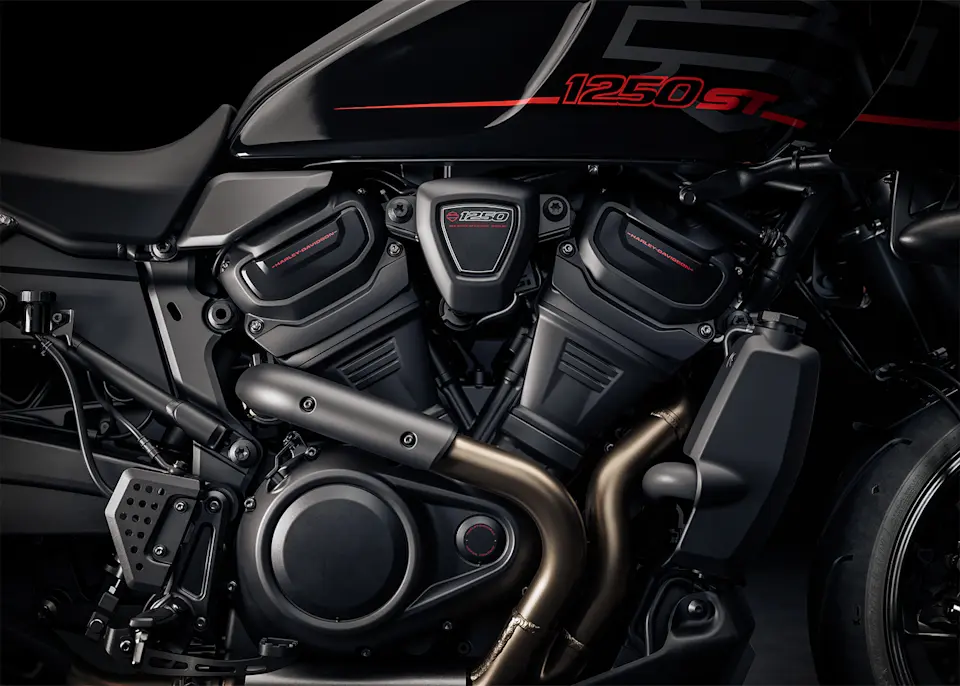

Engine+
Revolution® Max 1250
Bore
105.0 mm
Stroke
72.3 mm
Displacement
1,251.5 cm³
Compression Ratio
13.0:1
Fuel System+
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2 into 1 into 1; catalyst in header
Engine Torque Testing Method
J1349
Engine Torque+
123.3 Nm
Engine Torque (rpm)
6750
Horsepower
111 kW @ 8750 rpm
Lean Angle, Right (deg.)
37
Lean Angle, Left (deg.)
37
Fuel Economy Testing Method
Estimated City/Hwy
Fuel Economy+
5.1 L/100 km
Primary Drive
Primary Drive - Gear, 49/89 ratio
Gear Ratios (overall) 1st
13.11
Gear Ratios (overall) 2nd
9.687
Gear Ratios (overall) 3rd
7.509
Gear Ratios (overall) 4th
6.057
Gear Ratios (overall) 5th
5.08
Gear Ratios (overall) 6th
4.436
Front Fork
47mm inverted fork with electronically adjustable preload and manually adjustable compression and rebound. Aluminum fork triple clamps

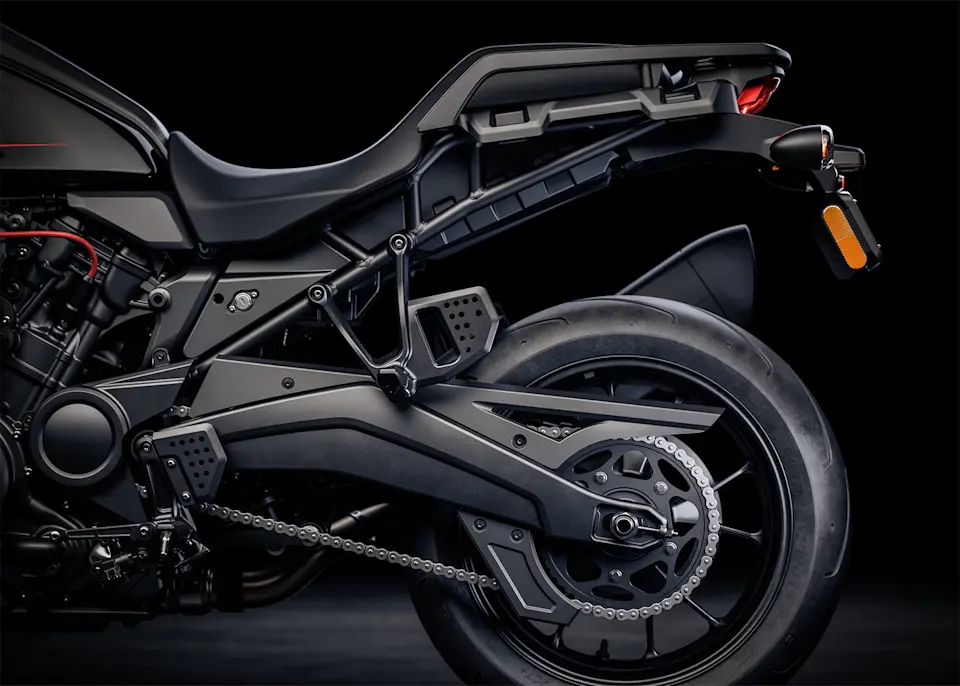

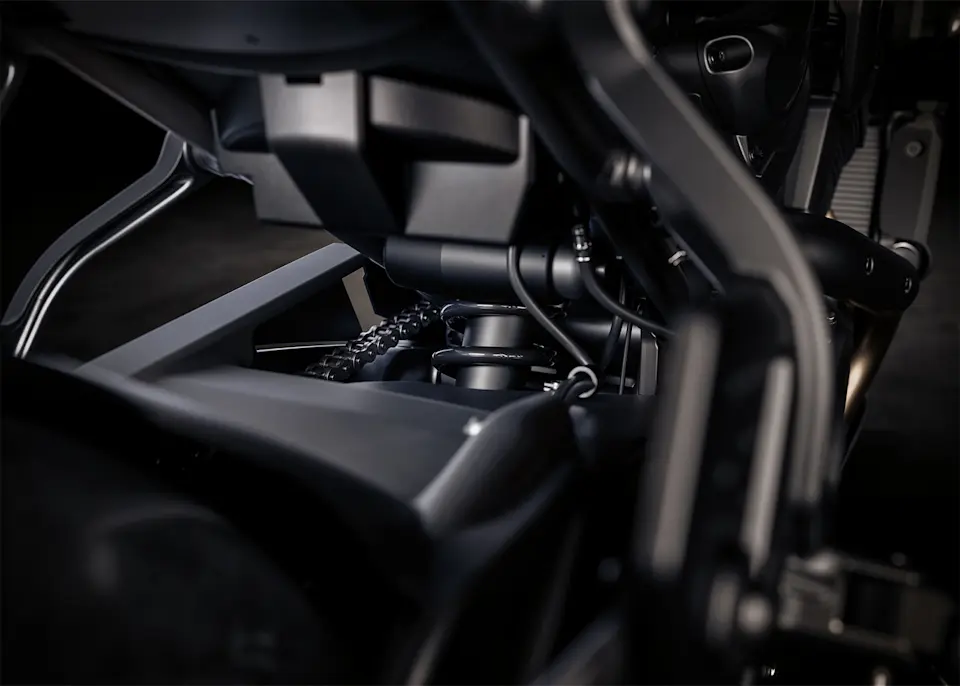

Rear Shocks
Linkage-mounted monoshock with automatic electronic preload control and manually adjustable compression & rebound damping

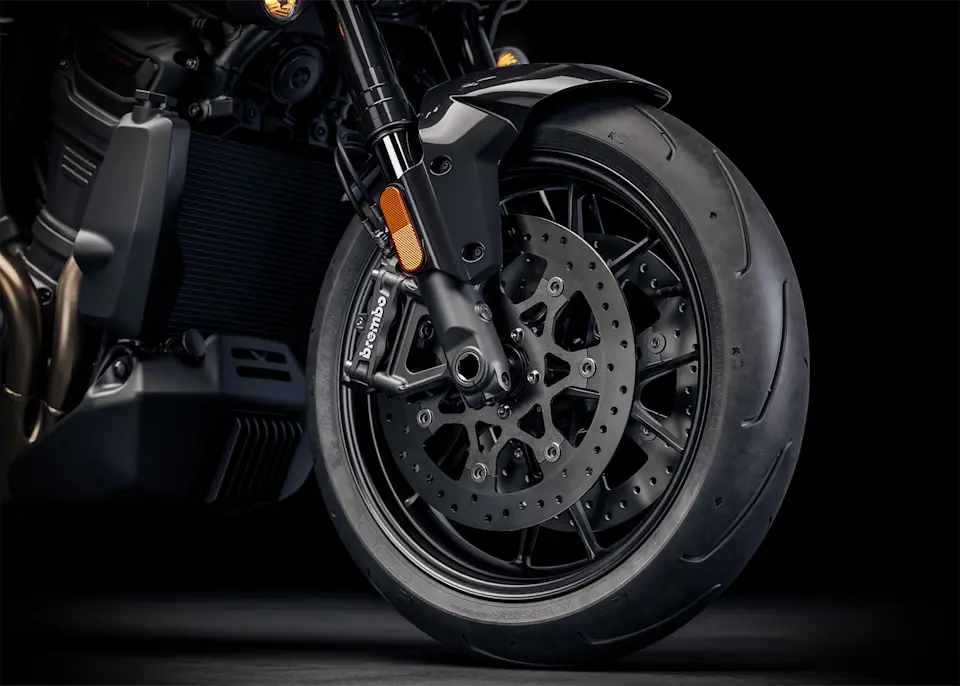

Wheels, Front Type+
Aluminum cast, satin black
Wheels, Rear Type+
Aluminum cast, satin black

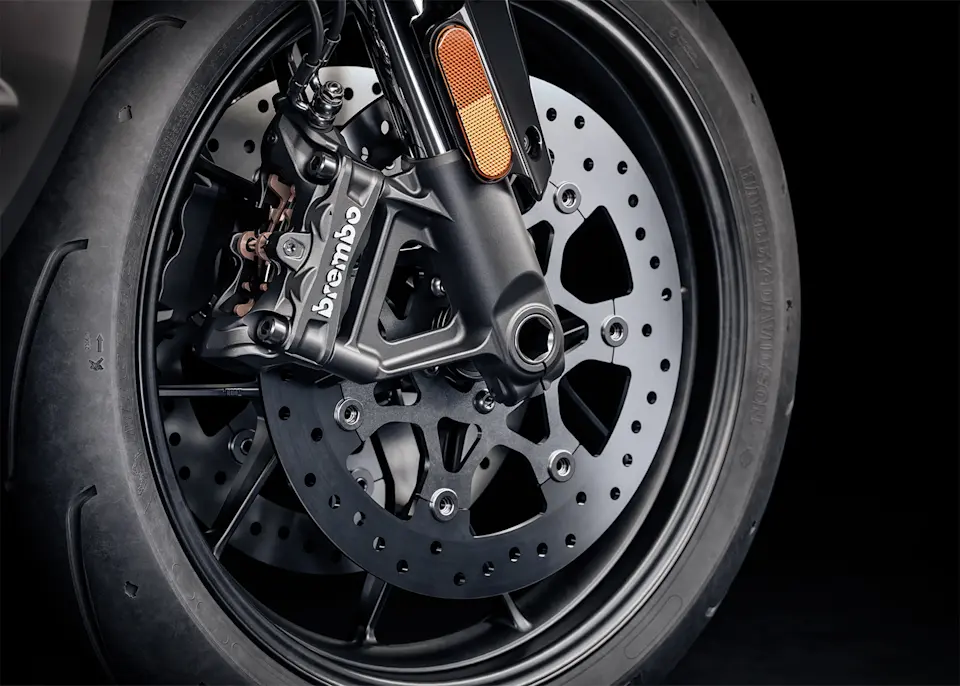

Brakes, Caliper Type
Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
Brakes, Rotor Type
Front: dual rotor, floating, hub mounted; Rear: solid uniform expansion rotor
Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights+
Headlamp:Daymaker® Adaptive LED Headlamp; Tail/Stop: All LED Tail/Stop lamp with signature tail lighting; Front Signal Lights:LED Bullet Turn Signals
Gauges
172.7 mm viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigation (H-D App ONLY)
Screen Size
172.7 mm
Type
Color TFT
Headset Specifications (if equipped)
Bluetooth
Languages
Arabic Chinese (Simplified/Traditional) Czech Danish Dutch English (default) Finnish French (Canada/France) German Greek Hungarian Italian Japanese Korean Norwegian Polish Portuguese (Portugal/Brazil) Indonesian Russian Slovak Spanish (Mexico/Spain) Swedish Thai Turkish Vietnamese
Hands-free Mobile Phone - via Bluetooth
Standard
Voice Recognition Languages: Phone functions only
Phone dependent
Voice Recognition Languages: Tuner/Media/Navigation
Phone dependent
Rider/Passenger Intercom
Headset function only
Vehicle Information Screen (Air temperature, oil pressure and EITMS)
TPMS, Engine temp, Battery Voltage, Ambient Air Temp
Text-to-Speech (TTS) Languages
Phone dependent
USB
Charging and Instrument update, USB-C, 5V, 3A
Bluetooth
Phone/Media Supported
