Harley Davidson 2025 CVO™ Pan America® - Carbon Blue

2025 CVO™ Pan America®

Book A Test Ride
Request Details

DESCRIPTION

2025 Harley-Davidson® CVO™ Pan America®, Premium Adventure Without Limits

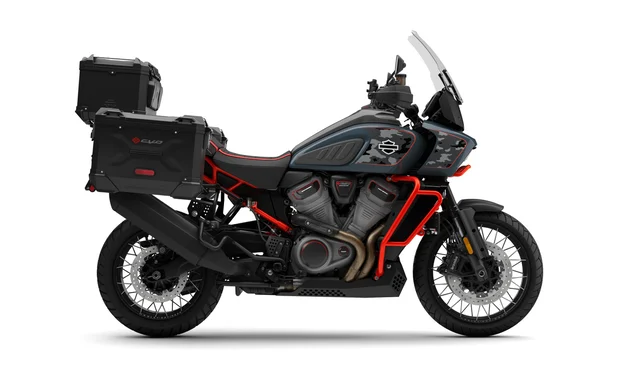

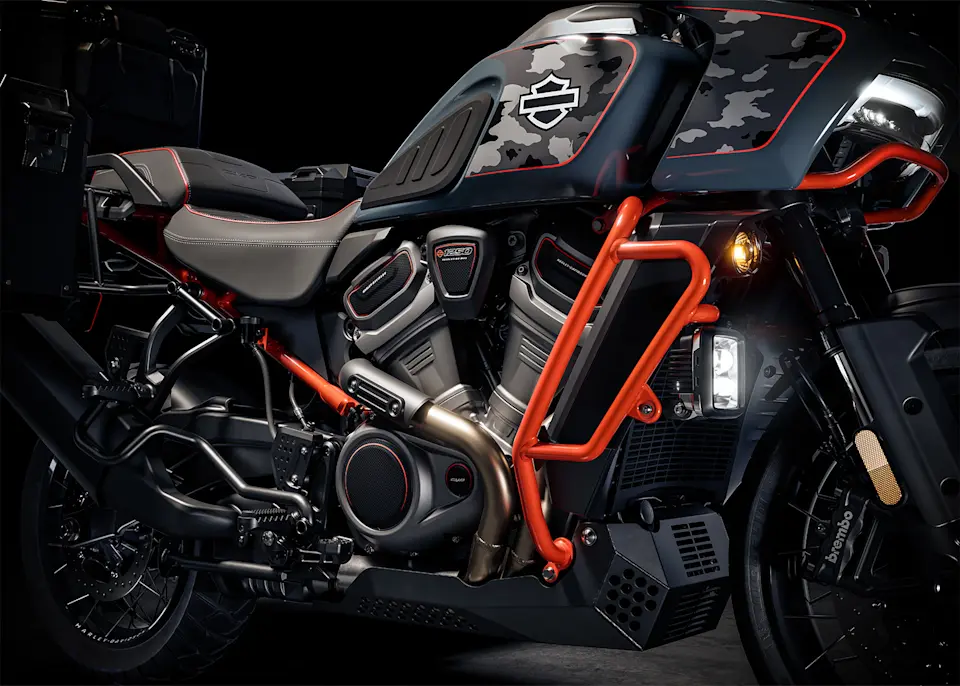

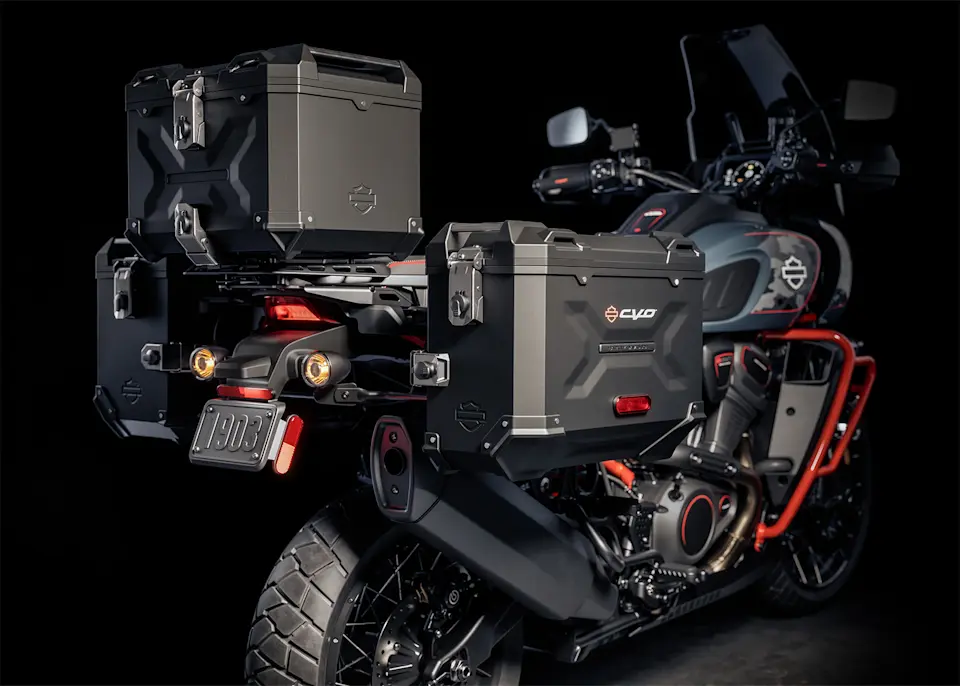

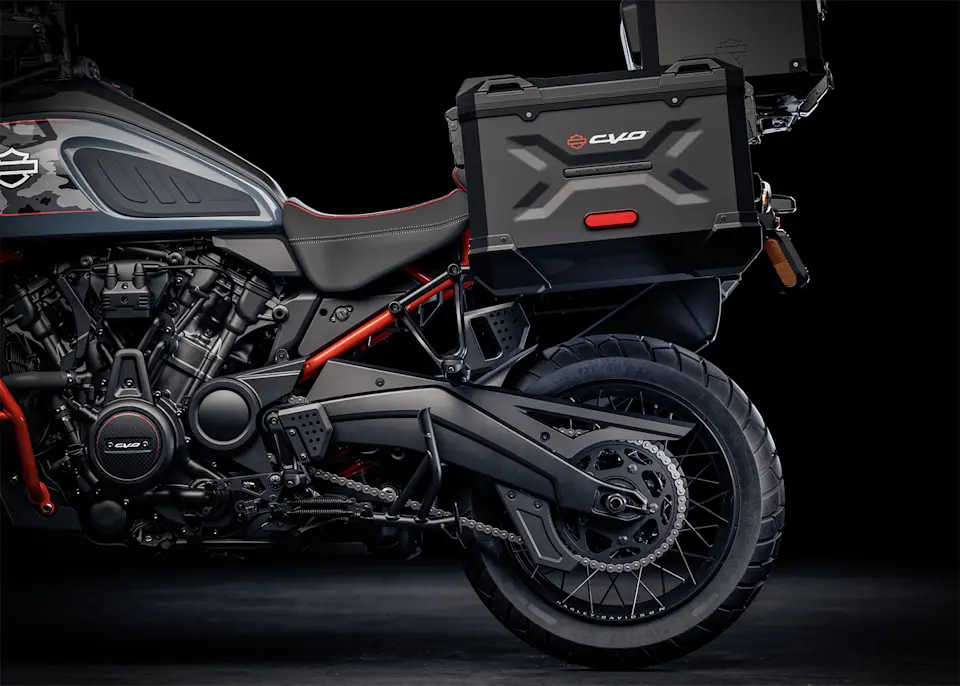

The 2025 Harley-Davidson® CVO™ Pan America® is the ultimate in adventure touring, combining rugged capability with premium CVO™ craftsmanship. Powered by the Revolution® Max 1250 engine delivering 150 horsepower, it’s built for both tarmac and trail. Adaptive Ride Height, semi-active suspension, and nine ride modes ensure confidence across all terrains, while exclusive features like tubeless laced wheels, SW-MOTECH® luggage, and a Daymaker® Adaptive Headlamp make every journey seamless. With striking Carbon Blue paint, a 6.8″ TFT touchscreen, and full Bluetooth® connectivity, this CVO™ adventure bike is ready for your next big ride. Request your quote today.

DISCLAIMER

Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

SPECIFICATION

Length
2344.4 mm
Width
1094.7 mm
Seat Height, Laden
772.2 mm
Ground Clearance
180.3 mm
Rake
25
Trail
109.2 mm
Wheelbase
1585.0 mm
Tire, Type
Michelin®Scorcher "Adventure”, Radial
Tires, Front Specification
120/70R19 60V
Tires, Rear Specification
170/60R17 72V
Fuel Capacity
21.2 L
Oil Capacity (w/filter)
4.5 L
Weight, In Running Order
298.9 kg

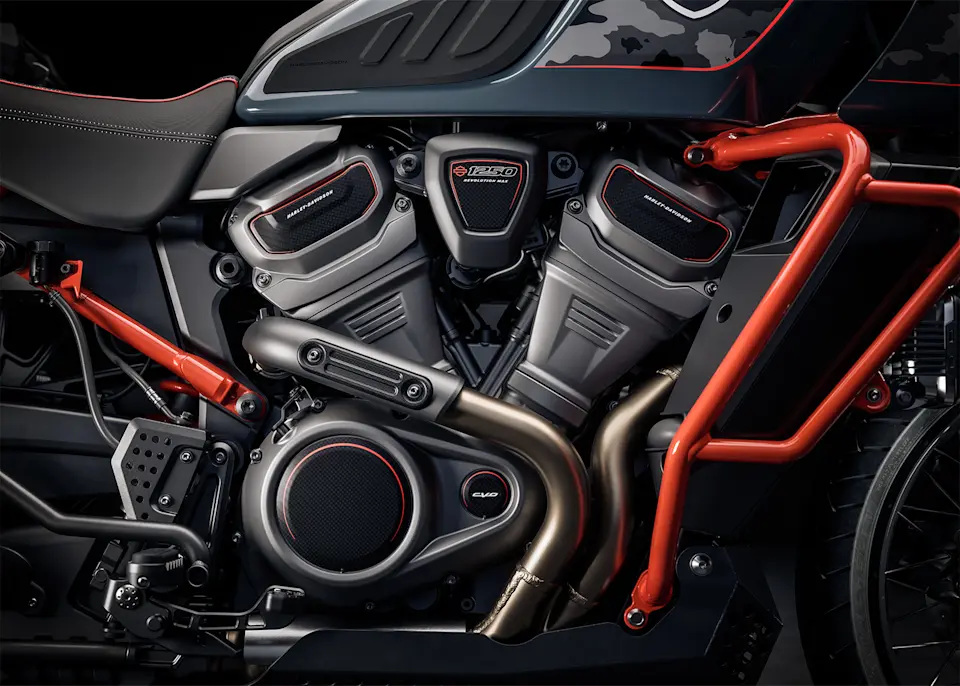

Engine+
Revolution® Max 1250
Bore
105.0 mm
Stroke
72.3 mm
Displacement
1252.3 cm³
Compression Ratio
13.0:1
Fuel System+
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2 into 1 into 1; catalyst in header
Engine Torque Testing Method
J1349
Engine Torque+
128.9 Nm
Engine Torque (rpm)
6750
Horsepower
111 kW @ 8750 rpm
Lean Angle, Right (deg.)
42
Lean Angle, Left (deg.)
42
Fuel Economy Testing Method
Estimated City/Hwy
Fuel Economy+
4.9 L/100km
Primary Drive
Gear, 49/89 ratio
Gear Ratios (overall) 1st
13.11
Gear Ratios (overall) 2nd
9.687
Gear Ratios (overall) 3rd
7.509
Gear Ratios (overall) 4th
6.057
Gear Ratios (overall) 5th
5.08
Gear Ratios (overall) 6th
4.436
Front Fork
47mm inverted fork with electronically adjustable semi-active damping control and Adaptive Ride Height (ARH). Aluminum fork triple clamps

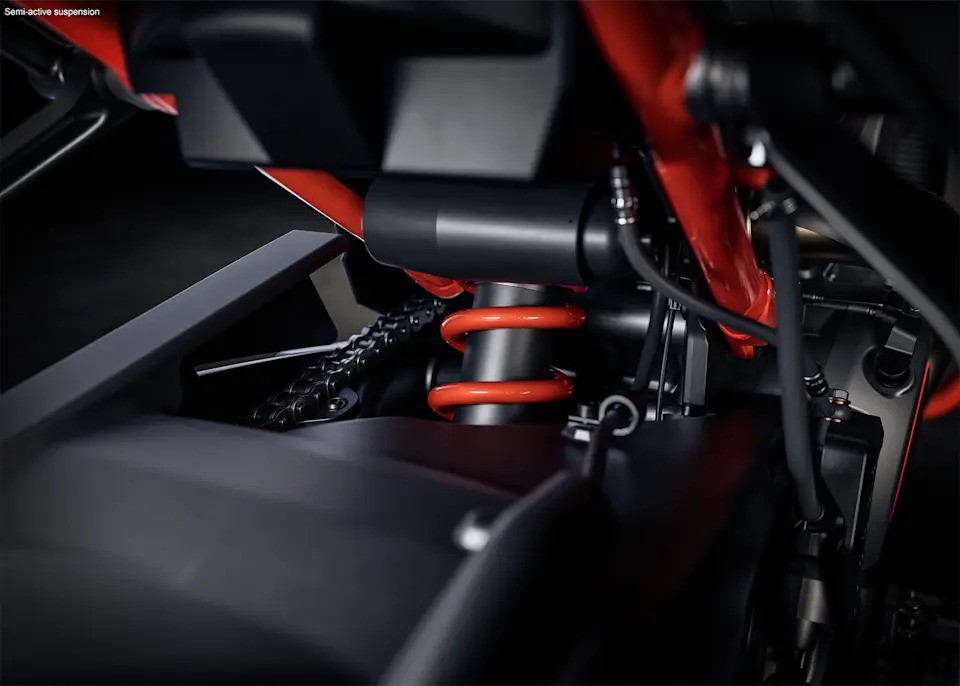

Rear Shocks

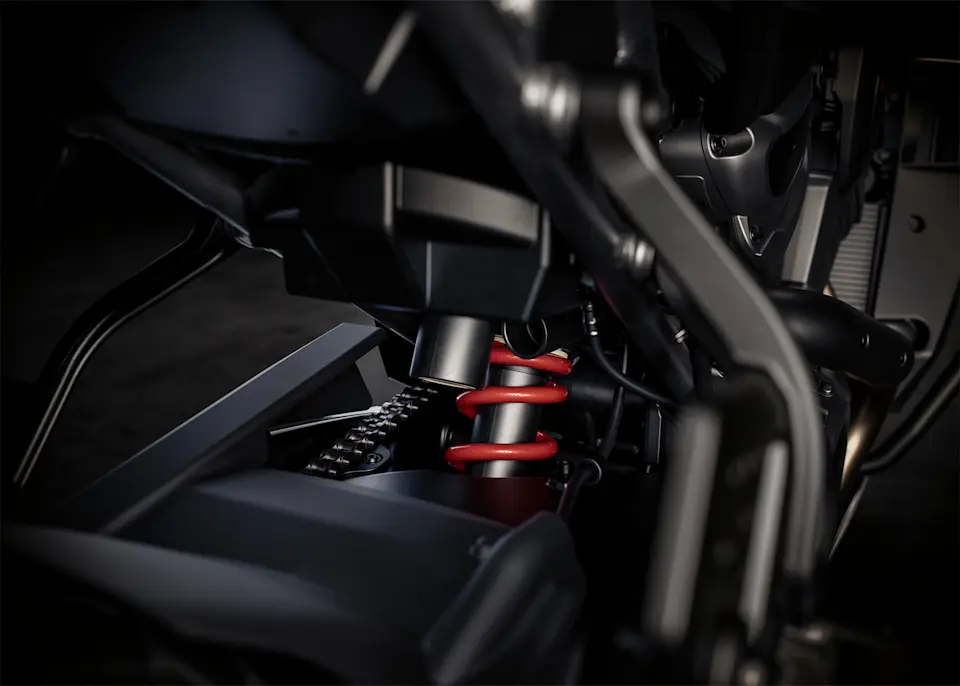

Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping and Adaptive Ride Height (ARH)

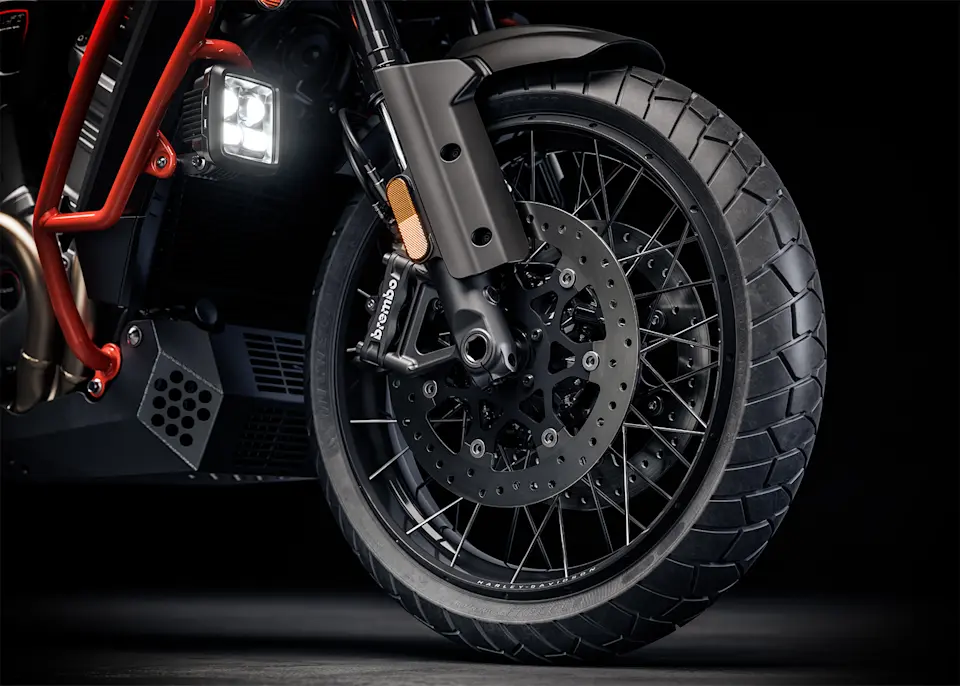

Wheels, Front Type+
Annodized aluminum tubeless laced
Wheels, Rear Type+
Annodized aluminum tubeless laced
Brakes, Caliper Type
Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
Brakes, Rotor Type
Front: dual rotor, floating, tower- mounted; Rear: solid uniform expansion rotor

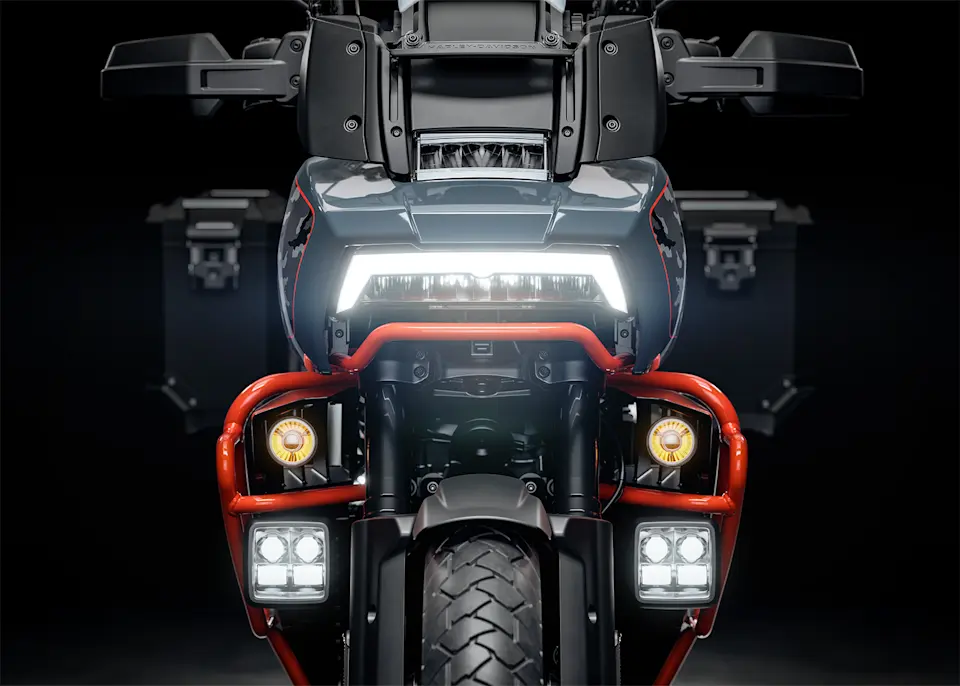

Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights+
Headlamp:Daymaker® Adaptive LED Headlamp with 6-segment LED banking lamp; Tail/Stop: All LED Tail/Stop lamp with signature tail lighting; Front Signal Lights:LED Bullet Turn Signals

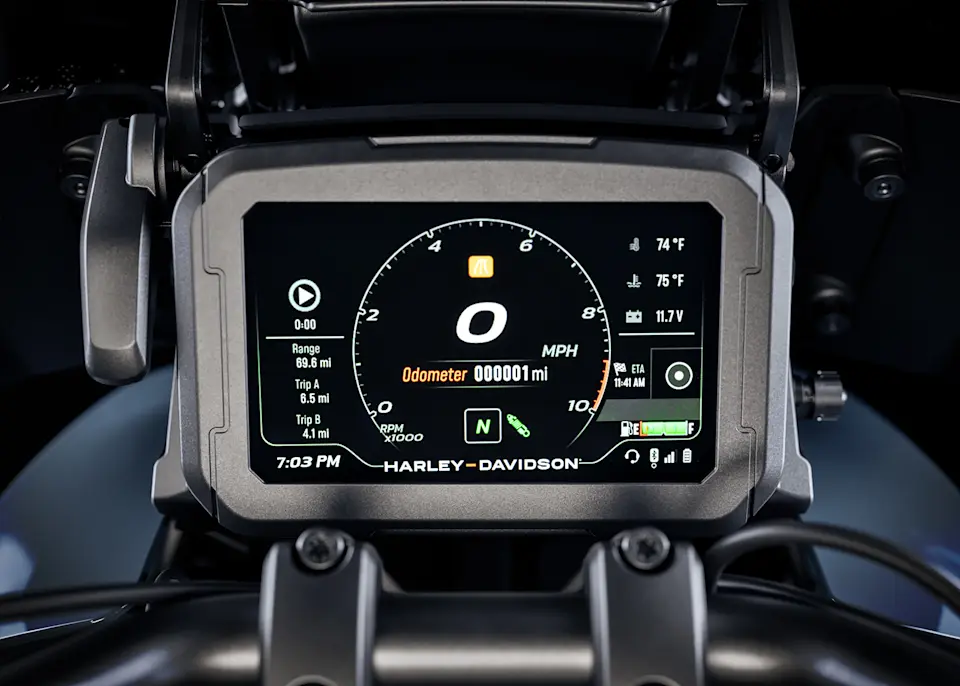

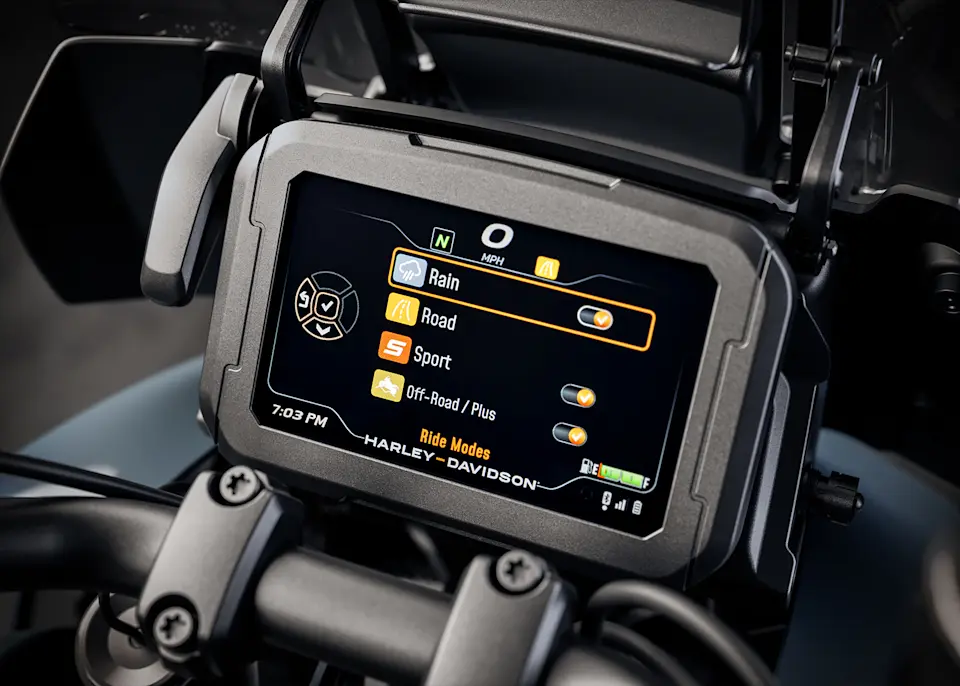

Gauges
172.7 mm viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigation (H-D App ONLY)
Screen Size
172.7 mm
Type
Color TFT
Headset Specifications (if equipped)
Bluetooth
Languages
Arabic Chinese (Simplified/Traditional) Czech Danish Dutch English (default) Finnish French (Canada/France) German Greek Hungarian Italian Japanese Korean Norwegian Polish Portuguese (Portugal/Brazil) Indonesian Russian Slovak Spanish (Mexico/Spain) Swedish Thai Turkish Vietnamese
Hands-free Mobile Phone - via Bluetooth
Standard
Voice Recognition Languages: Phone functions only
Phone dependent
Voice Recognition Languages: Tuner/Media/Navigation
Phone dependent
Rider/Passenger Intercom
Headset function only
Vehicle Information Screen (Air temperature, oil pressure and EITMS)
TPMS, Engine temp, Battery Voltage, Ambient Air Temp
Text-to-Speech (TTS) Languages
Phone dependent
USB
Charging and Instrument update, USB-C, 5V, 3A
Bluetooth
Phone/Media Supported
