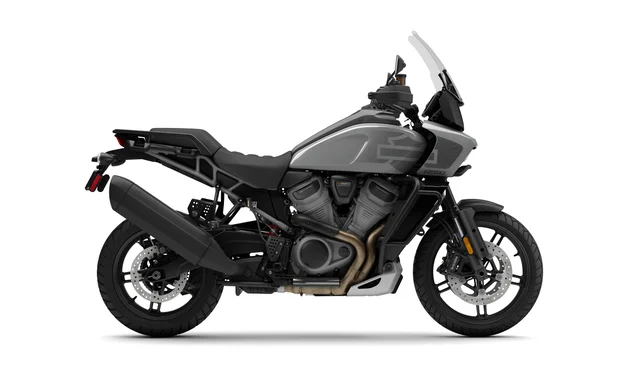

Harley Davidson 2025 Pan America® 1250 Special - Billiard Gray

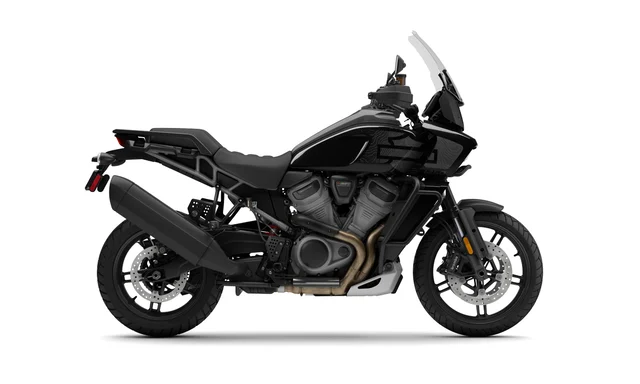

Harley Davidson 2025 Pan America® 1250 Special - Vivid Black
Harley Davidson 2025 Pan America® 1250 Special - Blue Burst

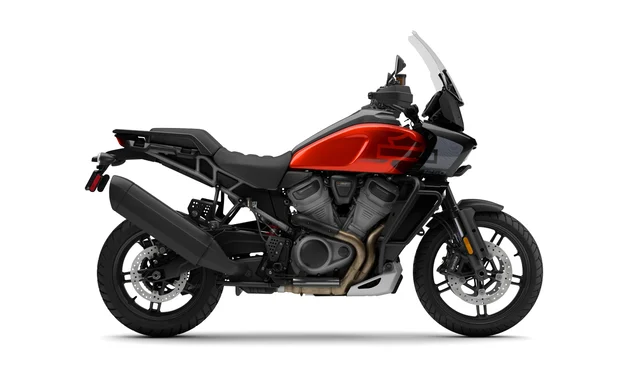

Harley Davidson 2025 Pan America® 1250 Special - Whiskey Fire/Raven Metallic

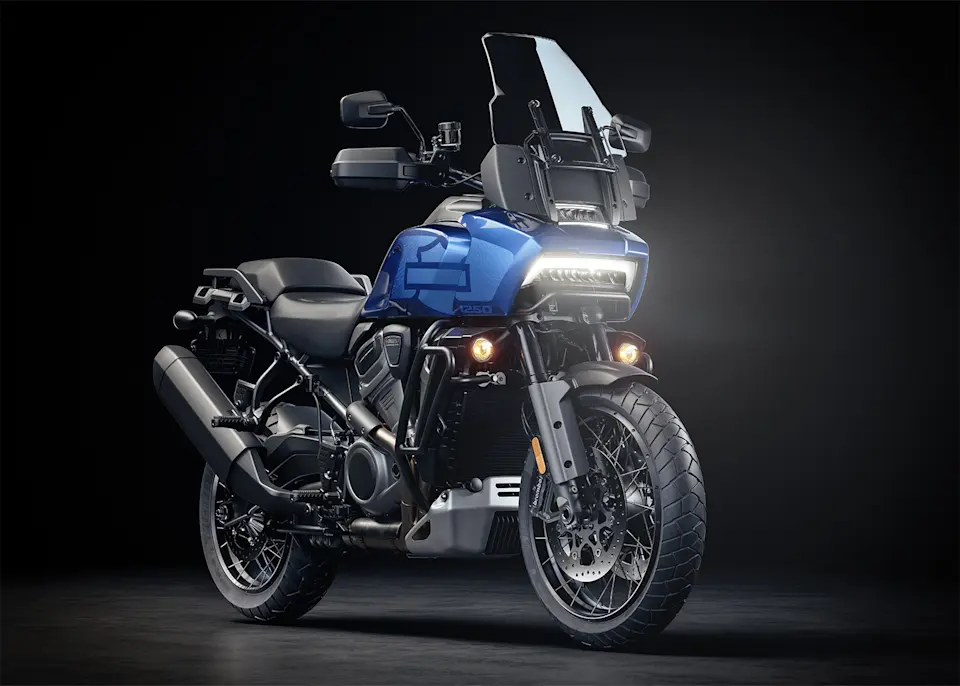

2025 Pan America® 1250 Special

Book A Test Ride
Request Details

DESCRIPTION

2025 Harley-Davidson® Pan America® 1250 Special, Premium Adventure & Redefined

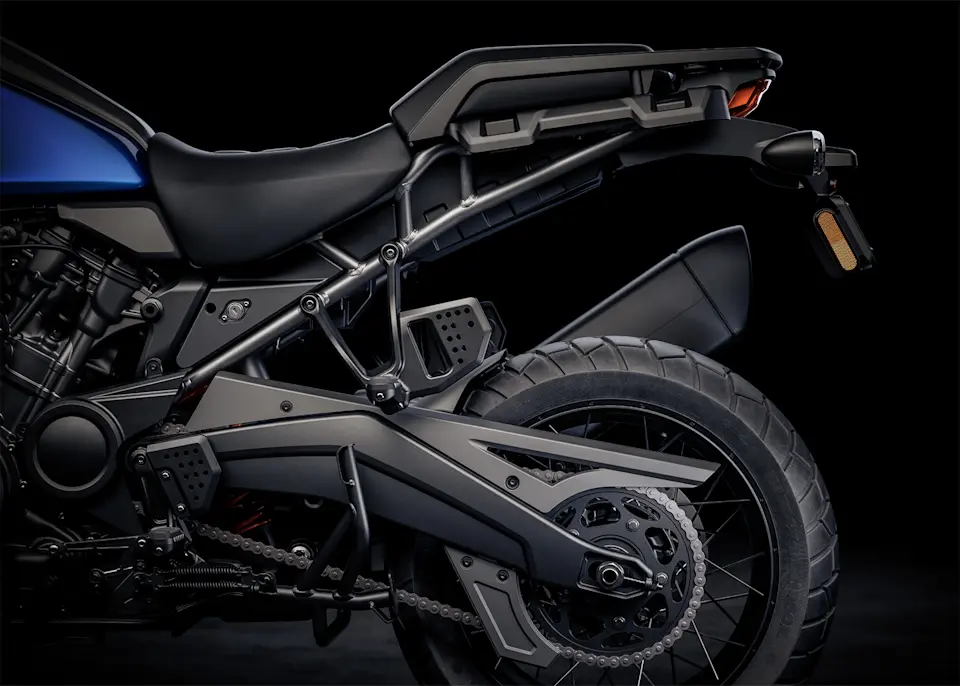

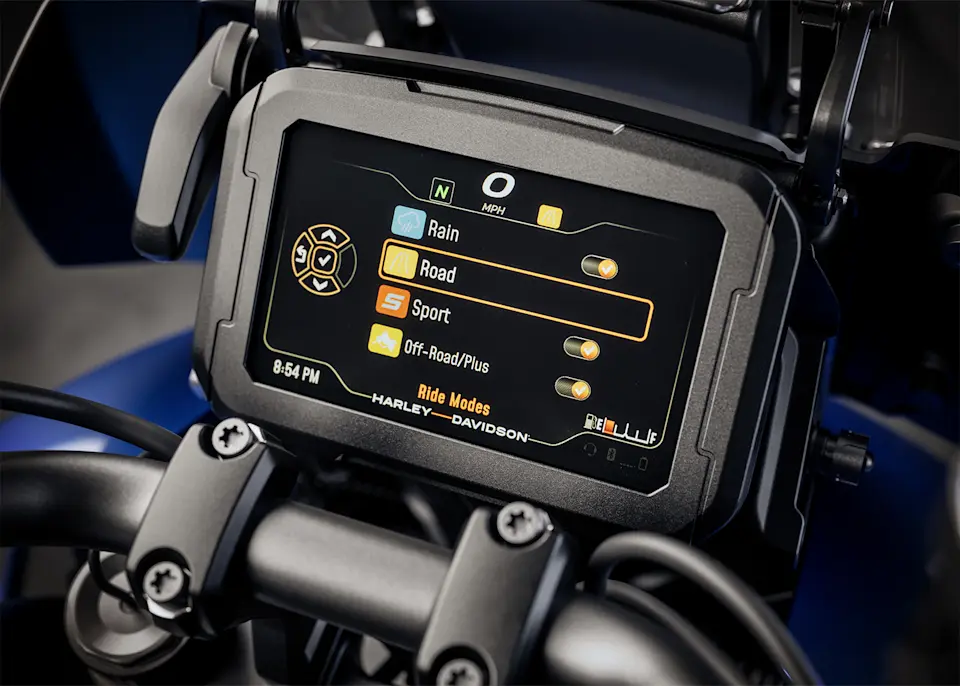

The 2025 Harley-Davidson® Pan America® 1250 Special is the ultimate adventure bike, blending rugged off-road capability with refined touring comfort. Powered by the Revolution® Max 1250 engine, it delivers thrilling torque and performance across all terrains. Adaptive Ride Height offers greater control when stopped, while semi-active suspension ensures smooth handling on the move. Premium features include optional laced wheels, Adaptive Forward Lighting, a 6.8-inch TFT touchscreen with H-D™ Connect, and Bluetooth® integration for full connectivity. With Brembo® brakes, TPMS, and customisable ride modes, the Pan America® 1250 Special is built for riders who go beyond the ordinary. Book your test ride today.

DISCLAIMER

Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

SPECIFICATION

Length
2,271.56 mm
Width
975.36 mm
Seat Height, Laden +

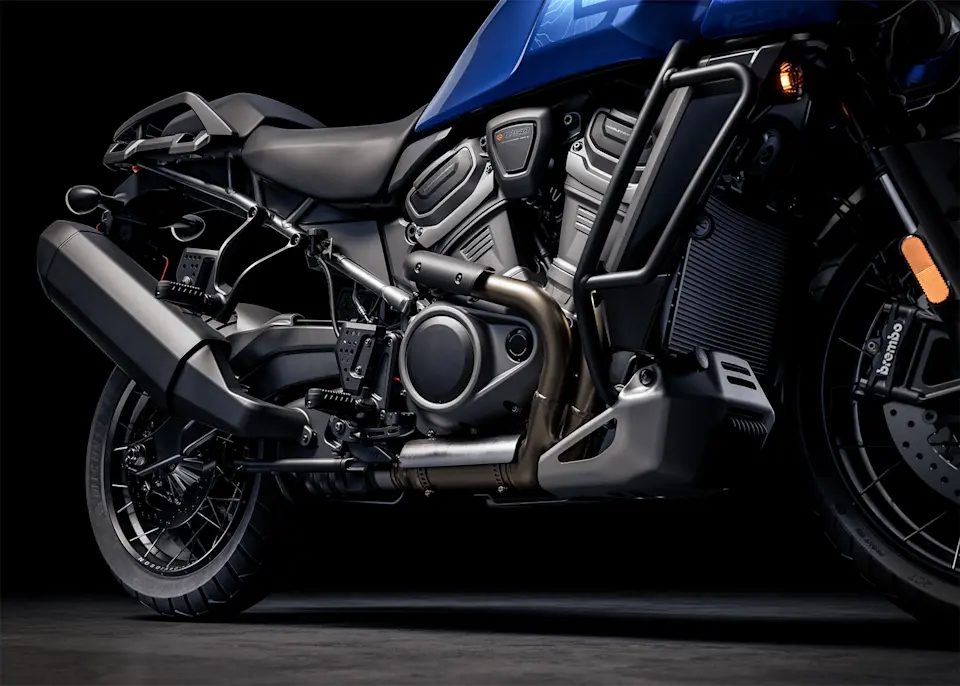

Low/High Seat Position; 789.94 mm/812.80 mm
Ground Clearance
175.26 mm
Rake
25
Trail
109.22 mm
Wheelbase
1,584.96 mm
Tire, Type
Michelin® Scorcher “Adventure”, Radial
Tires, Front Specification
120/70R19 60V
Tires, Rear Specification
170/60R17 72V
Fuel Capacity
21.19 L
Oil Capacity (w/filter)
4.49 L
Weight, In Running Order
258.1 kg
Engine+

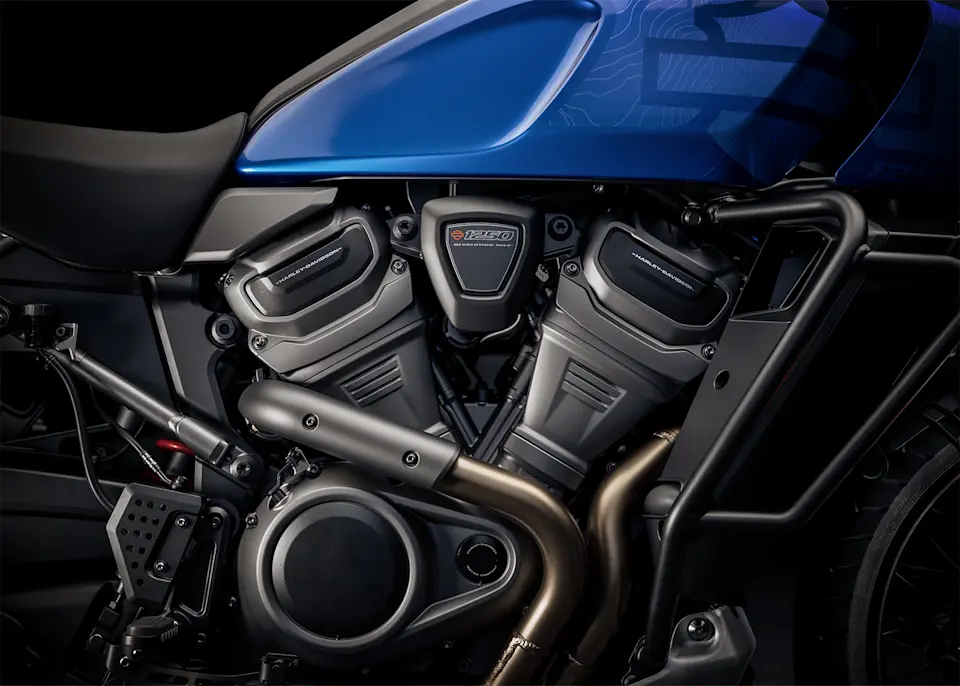

Revolution® Max 1250
Bore
105.00 mm
Stroke
72.31 mm
Displacement
1,251.54 cm³
Compression Ratio
13.0:1
Fuel System+
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-into-1-into-1; catalyst in header
Engine Torque Testing Method
J1349
Engine Torque+
128.81 Nm
Engine Torque (rpm)
6750
Horsepower
112 kW @ 8750 rpm
Lean Angle, Right (deg.)
42
Lean Angle, Left (deg.)
42
Fuel Economy Testing Method
Estimated City/Hwy
Fuel Economy+
5.11 L/100 km
Primary Drive
Gear, 49/89 ratio
Gear Ratios (overall) 1st
13.11
Gear Ratios (overall) 2nd
9.687
Gear Ratios (overall) 3rd
7.509
Gear Ratios (overall) 4th
6.057
Gear Ratios (overall) 5th
5.08
Gear Ratios (overall) 6th
4.436
Front Fork
47mm inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps
Rear Shocks

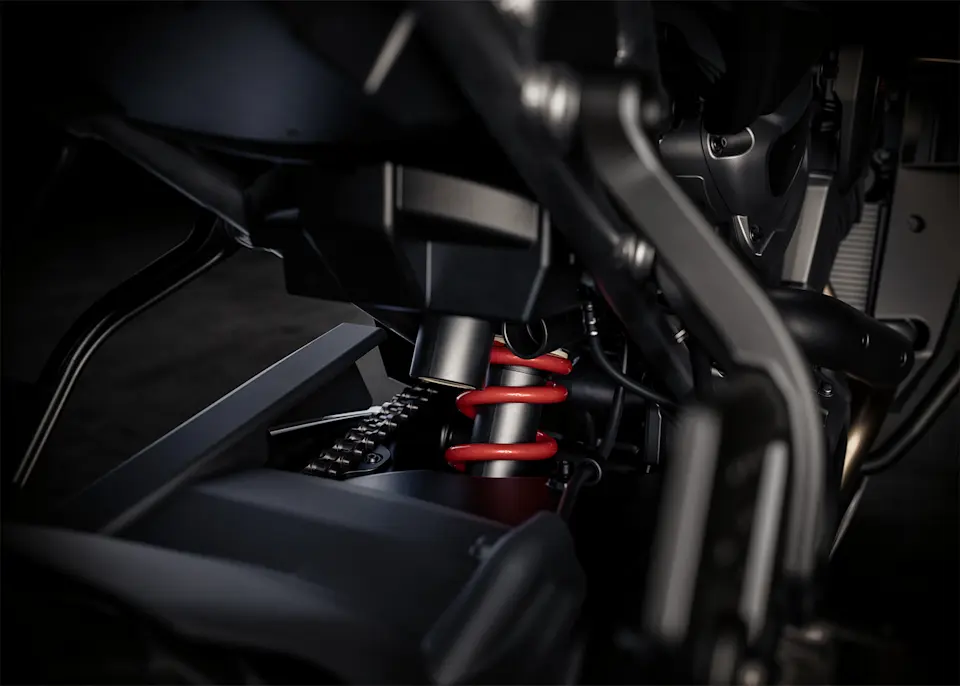

Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping

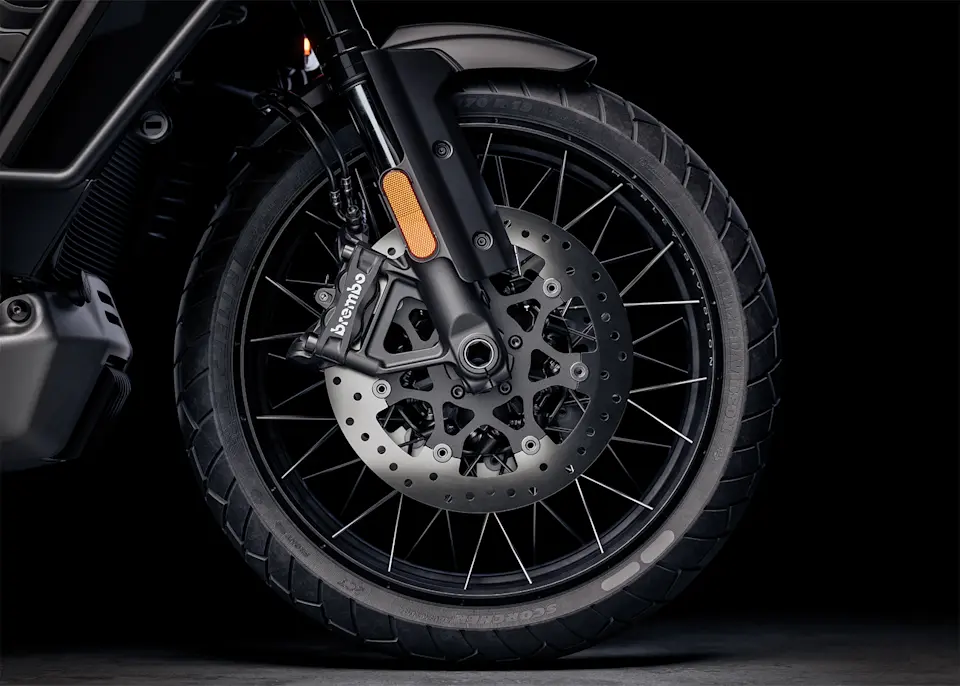

Wheels, Front Type+
Aluminum cast, satin black
Wheels, Rear Type+
Aluminum cast, satin black

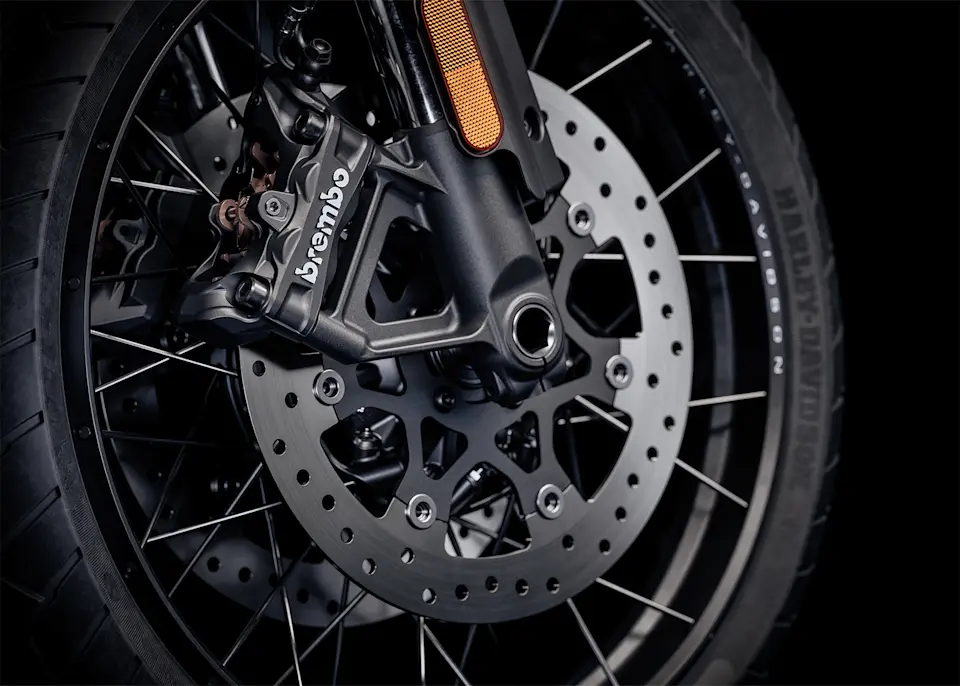

Brakes, Caliper Type
Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
Brakes, Rotor Type
Front: dual rotor, floating, tower- mounted; Rear: solid uniform expansion rotor
Lights (as per country regulation), Headlamp, Tail/Stop/Front Signal Lights+

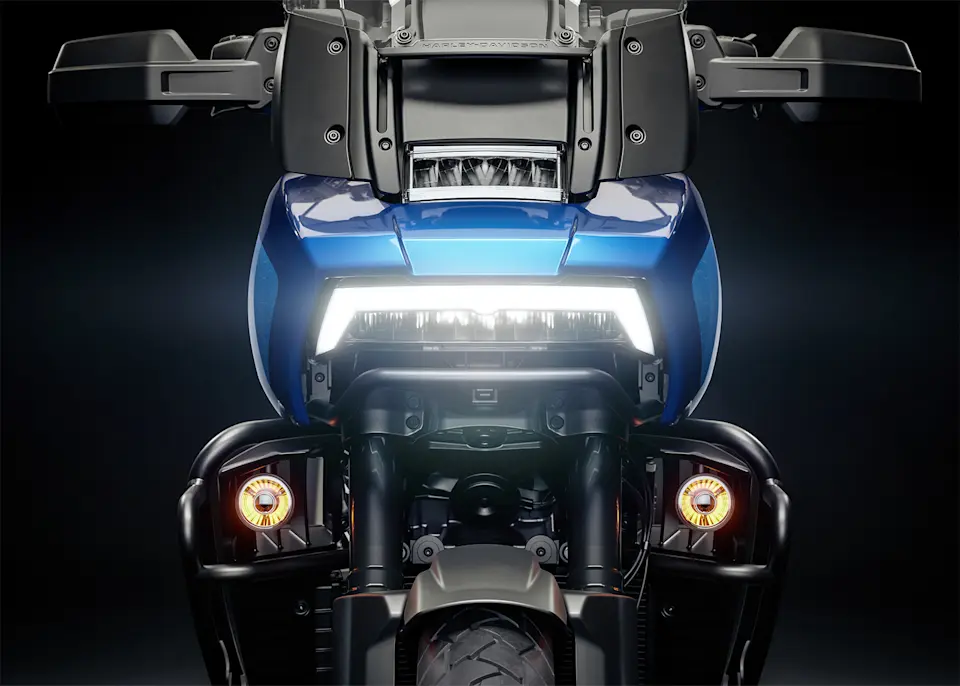

Headlamp:Daymaker® Adaptive LED Headlamp; Tail/Stop: All LED Tail/Stop lamp with signature tail lighting; Front Signal Lights:LED Bullet Turn Signals
Gauges

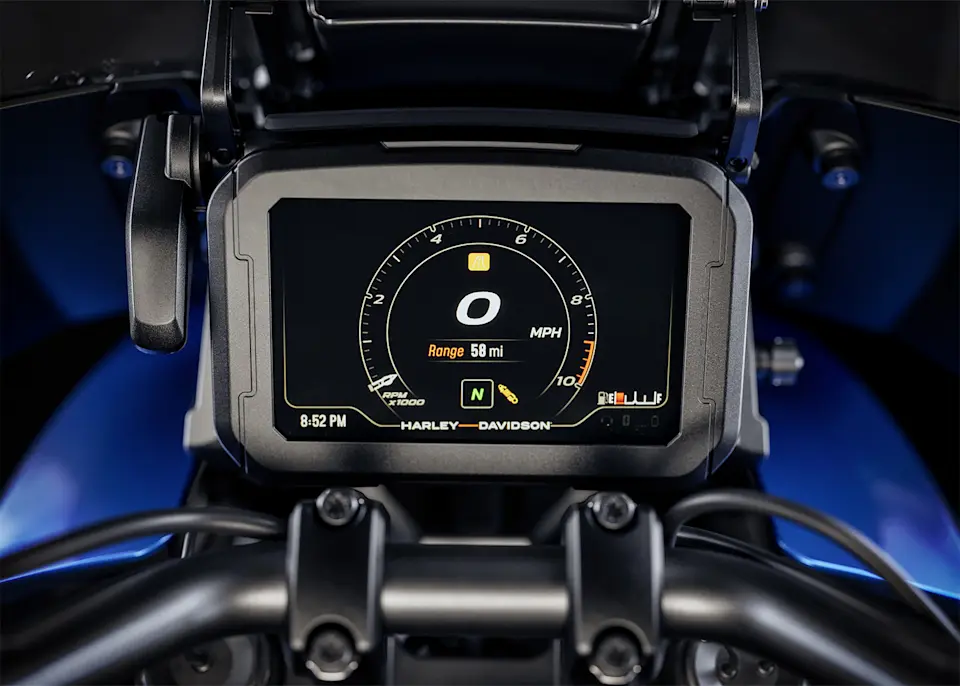

172.72 mm viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigation (H-D App ONLY)
Screen Size
172.72 mm
Type
Color TFT
Headset Specifications (if equipped)
Bluetooth
Languages
Arabic Chinese (Simplified/Traditional) Czech Danish Dutch English (default) Finnish French (Canada/France) German Greek Hungarian Italian Japanese Korean Norwegian Polish Portuguese (Portugal/Brazil) Indonesian Russian Slovak Spanish (Mexico/Spain) Swedish Thai Turkish Vietnamese
Hands-free Mobile Phone - via Bluetooth
Standard
Voice Recognition Languages: Phone functions only
Phone dependent
Voice Recognition Languages: Tuner/Media/Navigation
Phone dependent
Rider/Passenger Intercom
Headset function only
Vehicle Information Screen (Air temperature, oil pressure and EITMS)
TPMS, Engine temp, Battery Voltage, Ambient Air Temp
Text-to-Speech (TTS) Languages
Phone dependent
USB
Charging and Instrument update, USB-C, 5V, 3A
Bluetooth
Phone/Media Supported
