Description

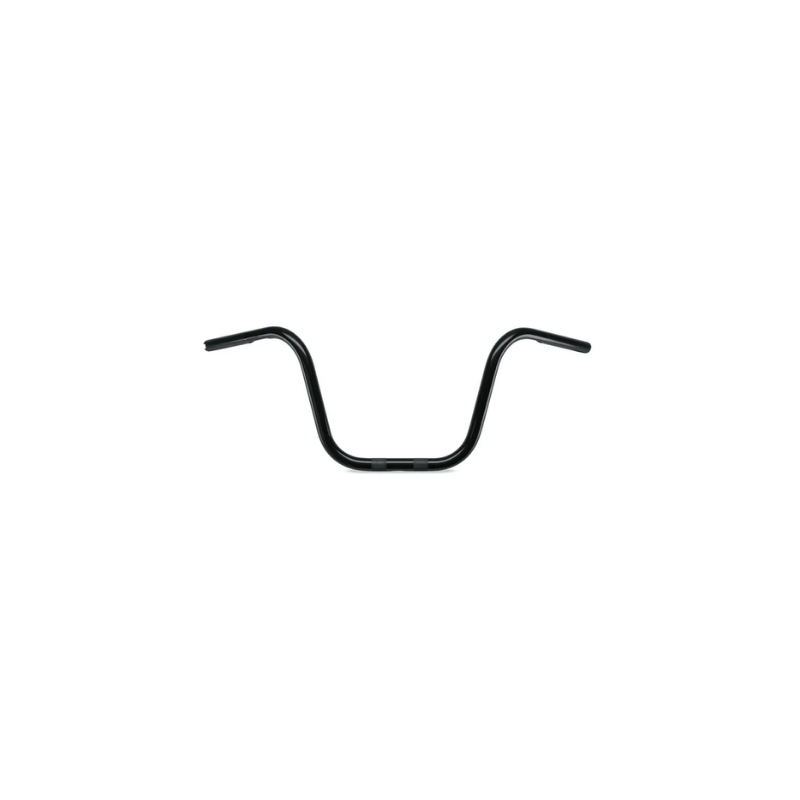

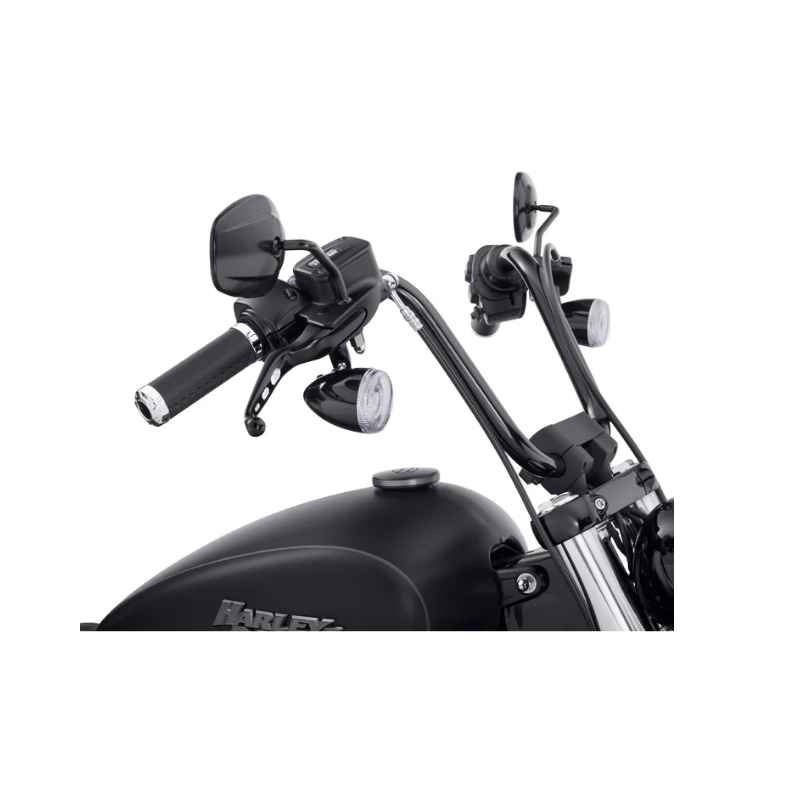

The 12″ mini-ape 1.0″ diameter handlebar delivers a modestly higher hand position to achieve a traditional look, a relaxed style, and a more comfortable riding position for some riders.

• Gloss Black finish
• Features a conservative rise and bend for rider comfort
• See the Harley-Davidson Handlebar Installation Requirements document for additional components required for installation

Details
Fits ’07-’23 XL883L, XL883N, XL1200CX, XL1200L, XL1200N, XL1200NS, XL1200T, XL1200V, XL1200X, XL1200XS, and ’18-’24 ABS enabled FLDE, FLSL and FXLR models. Also fits ’06-’17 FXDB and ’96-’05 FXDWG models with Original Equipment handlebar P/N 58079-93. All models excluding FXDWG and ’06-’11 FXDB require separate purchases of additional components.

Base Width: 10.0
Base Width UOM: Inches
Knurl Center-to-Center: 8.75
Knurl Center-to-Center UOM: Inches
Diameter: 1.0
Material Diameter UOM: Inches
Sold Separately: Additional installation components
Sold In Units: Each
Material: Stainless steel
In the Box: Handlebar only
Pullback: 6.5
Pullback UOM: Inches
Rise: 8.75
Rise UOM: Inches
Tip-to-Tip: 32.0
Tip-to-Tip UOM: Inches

Notes:
Installation of some handlebars and risers may require a change in clutch and/or throttle cable and brake lines for some models. Handlebar height is regulated in many locations. Check local laws to ensure your motorcycle meets applicable regulations.
