Description

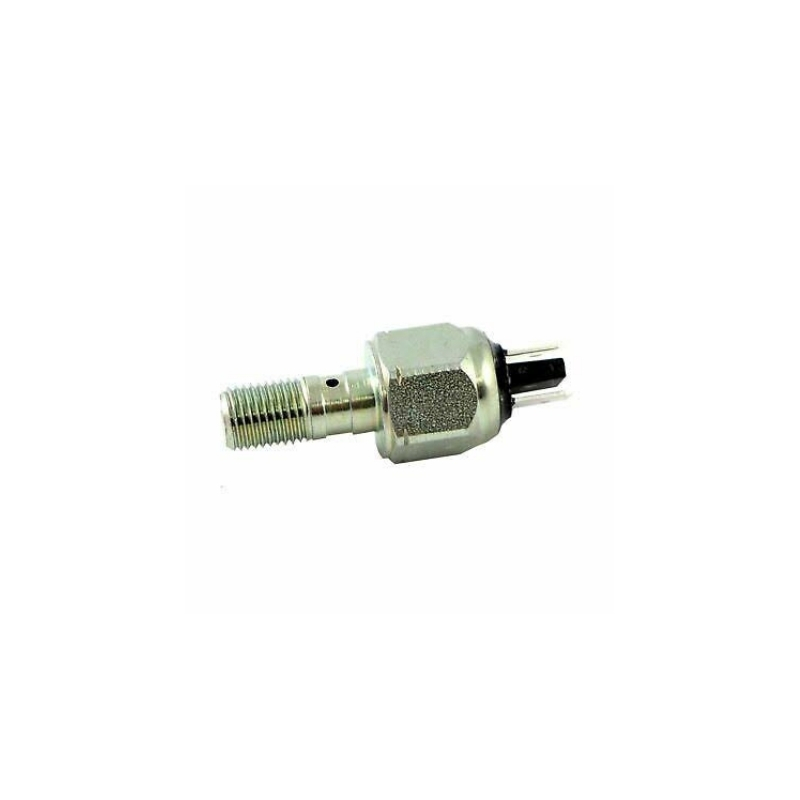

This banjo bolt is an integral part of the rear brake switch system on Harley-Davidson motorcycles. It is used to attach the brake line to the brake caliper or master cylinder, while also incorporating the rear brake light switch mechanism into the brake system.

Key Features:
Material: The banjo bolt is typically made from durable steel or stainless steel, which is corrosion-resistant and provides strength under the pressure of brake fluid and system operation.
Integrated Switch Mechanism: This banjo bolt has a built-in switch function that activates the rear brake light when the brake pedal is applied. When the brake line is pressurized, it activates the switch, signaling the brake light to illuminate.
OEM Quality: As an OEM (Original Equipment Manufacturer) part, the HD72026-08B banjo bolt is designed to meet Harley-Davidson’s high standards for quality and performance, ensuring proper fitment and function in the rear brake system.
Thread Compatibility: The bolt is designed to match the thread specifications required for Harley-Davidson’s brake systems, ensuring secure and leak-free installation.

Functionality:
Brake Light Activation: The primary function of the HD72026-08B banjo bolt is to integrate the brake light switch into the rear brake hydraulic system. It ensures that the rear brake light turns on when the brake system is engaged.
Brake Line Connection: In addition to activating the brake light, the banjo bolt also serves to connect the brake line to the brake caliper or master cylinder, allowing brake fluid to flow through the system.

Applications:
Harley-Davidson Touring Models: The banjo bolt is typically used in various Harley-Davidson Touring models, including the Electra Glide, Street Glide, Road King, and Ultra Limited.
Harley-Davidson Softail and Dyna Models: Softail and Dyna models that utilize rear brake systems with hydraulic brake light switches may also use this part.
Brake System Maintenance or Upgrade: This part is ideal for replacing a worn or damaged banjo bolt or when upgrading the brake system in certain Harley-Davidson motorcycles.

Possible Models Compatible with:
Harley-Davidson Touring Models: Such as Electra Glide, Street Glide, Ultra Limited, and Road King, which use hydraulic brake systems and incorporate a brake light switch through the banjo bolt.
Harley-Davidson Softail Models: Softail models, such as the Heritage Softail and Fat Boy, may also be compatible with this banjo bolt, especially those with hydraulic rear brake systems.
Harley-Davidson Dyna Models: Dyna models, such as Low Rider or Super Glide, can also be fitted with this component if they have a rear brake system that incorporates a brake light switch.

Fitment Considerations:
Brake Line System: Make sure the brake system on your motorcycle is compatible with a hydraulic brake light switch system, as the banjo bolt integrates with the rear brake line and light switch.
Thread Compatibility: Double-check the thread specifications and size of the bolt to ensure it matches the requirements of your motorcycle’s brake caliper or master cylinder.

Installation:
Brake Line Installation: The banjo bolt is installed by connecting the brake line to the brake caliper or master cylinder, securing the brake line and activating the brake light switch simultaneously.
Torque Specifications: Proper torque settings should be followed when installing the banjo bolt to ensure the brake line is secure and there are no leaks. Typically, brake components should be tightened to the manufacturer’s recommended torque specifications.
Brake Fluid Check: After installation, make sure to check for any leaks and verify that the brake fluid levels are correct, as the brake system is pressurized through the banjo bolt.
