Seat Height, Laden +
678.18 mm
Ground Clearance
144.78 mm
Tire, Type
Dunlop® Harley-Davidson Series, bias blackwall front and rear
Tires, Front Specification
130/60B19 M/C 61H
Tires, Rear Specification
180/55B18 M/C 80H
Oil Capacity (w/filter)
4.73 L
Weight, In Running Order
392.85 kg
Luggage Capacity - Volume
62,308.58 cm³
Primary Drive
Chain, 34/46 ratio
Gear Ratios (overall) 1st
9.593
Gear Ratios (overall) 2nd
6.65
Gear Ratios (overall) 3rd
4.938
Gear Ratios (overall) 4th
4
Gear Ratios (overall) 5th
3.407
Gear Ratios (overall) 6th
2.875

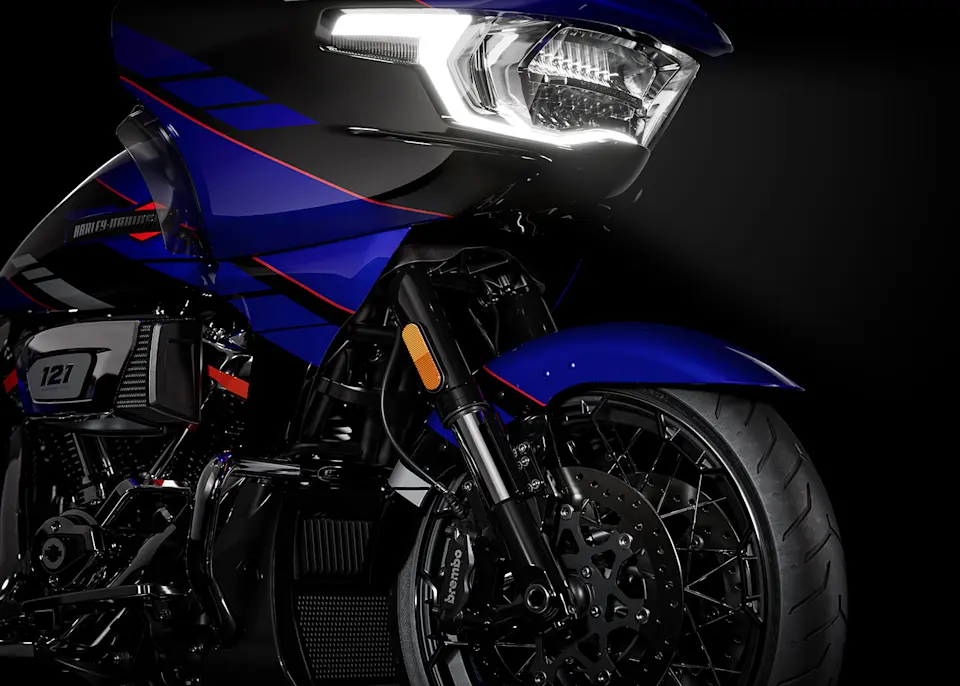

Front Fork
Mild steel; tubular frame, two-piece stamped and welded backbone; cast and forged junctions; twin down tubes; bolt-on rear frame with forged fender supports; MIG welded

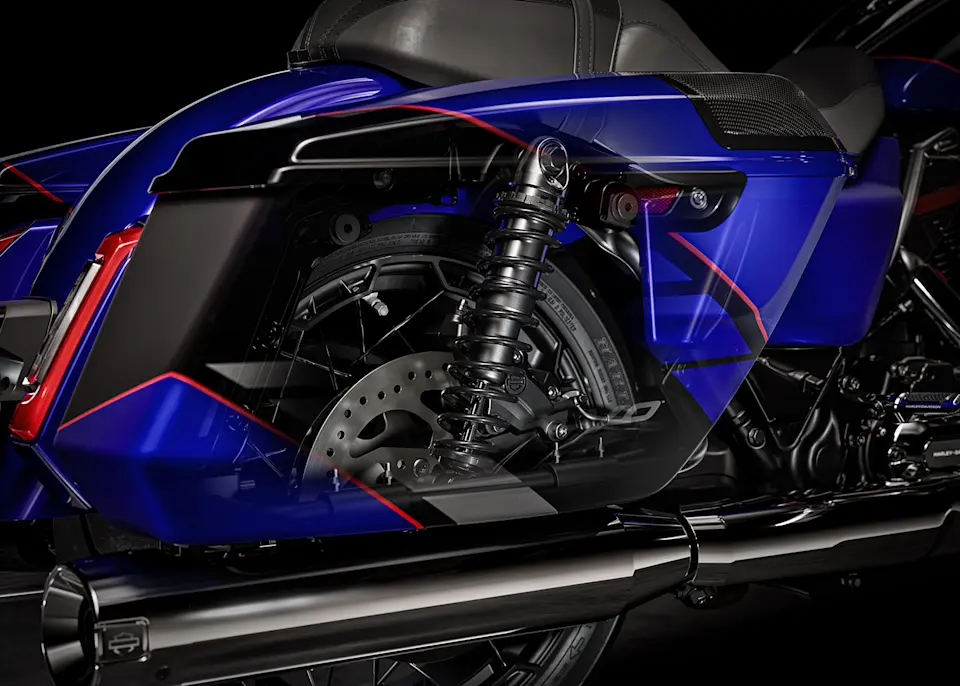

Rear Shocks
Dual adjustable emulsions suspension with remote preload adjustment on the left shock, and threaded preload on the right shock

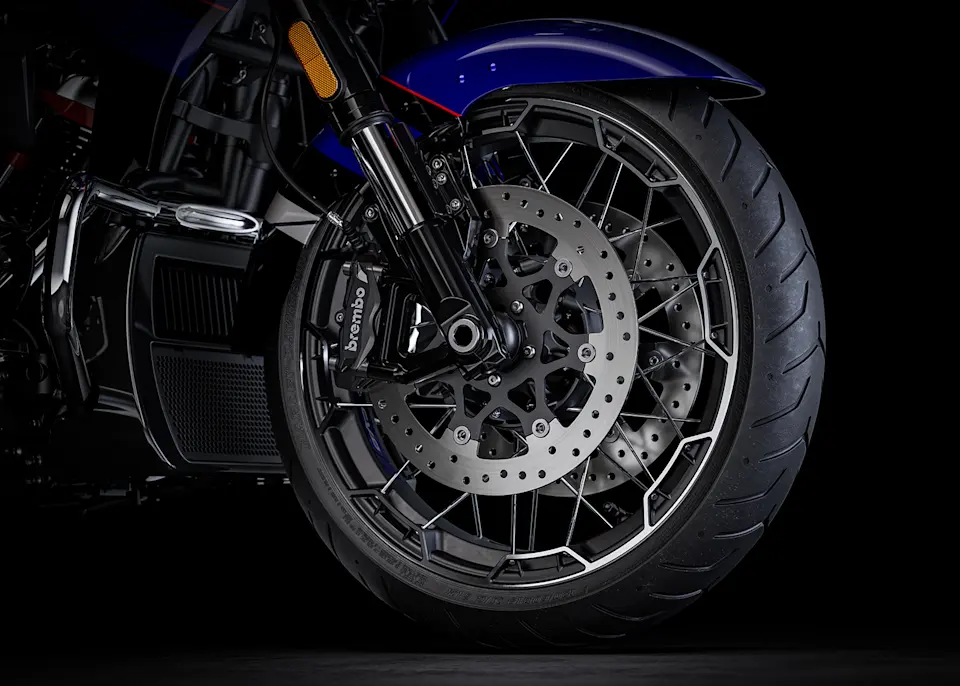

Wheels, Front Type+
Combo Cast Laced
Wheels, Rear Type+
Combo Cast Laced
Brakes, Caliper Type
32 mm, 4-piston fixed dual radially mounted front, and single axially mounted rear
Brakes, Rotor Type
Dual floating rotors (front), fixed rotor (rear)

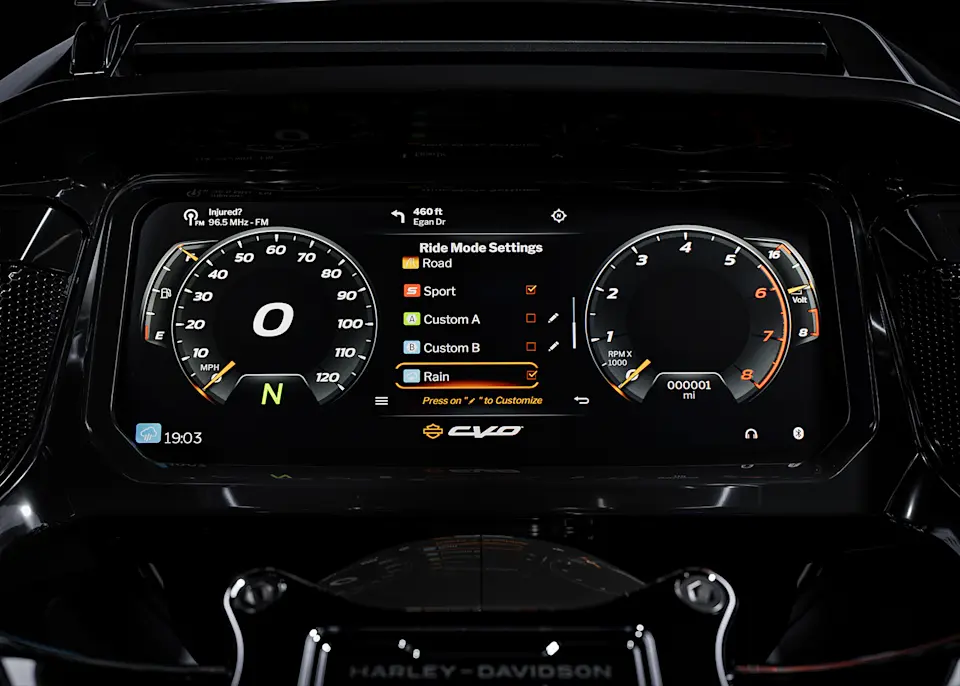

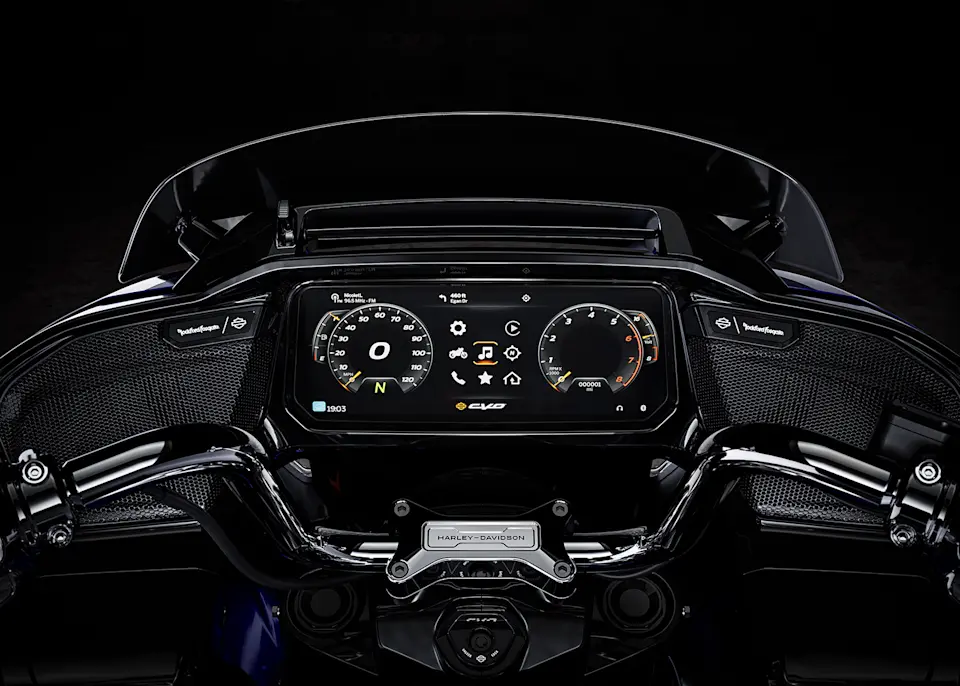

Infotainment system
Skyline™ OS

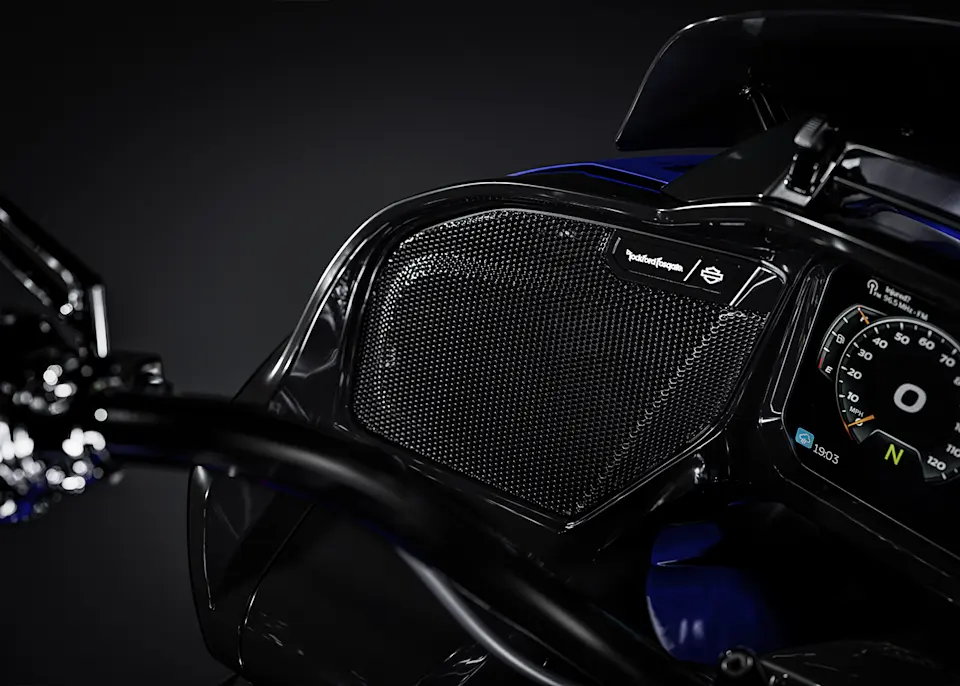

Speaker Size
Two 165.1 mm fairing speakers, and two 5x 177.8 mm saddlebag speakers
Headset Specifications (if equipped)
Harley-Davidson Packtalk Edge wireless Bluetooth® headset
SD Card, Flash Drive and MP3 - via USB Connection
Supported
Languages
Arabic Bahasa (Indonesian) Catalan Chinese (Simplified/Traditional) Czech Danish Dutch English (UK/USA default) Finnish French (Canada/France) German Hebrew Hungarian Indonesian Italian Japanese Korean Malay Norwegian Polish Portuguese (Brazil/Portugal) Romanian Russian Siamese (Thai) Slovak Spanish (Mexico/Spain) Swedish Tagalog Turkish Vietnamese
Hands-free Mobile Phone - via Bluetooth
Standard
Voice Recognition Languages: Phone functions only
Phone dependent
Voice Recognition Languages: Tuner/Media/Navigation
Phone dependent
Rider/Passenger Intercom
Standard (Passenger Headset Sold Separately); VOX is available for H-D headsets
Vehicle Information Screen (Air temperature, oil pressure and EITMS)
Standard
Text-to-Speech (TTS) Languages
Phone dependent
USB
USB-C/MTP/iPod/iPhone, any device with proper adapters to the electric power outlet located in the inner fairing storage.
Phone Connectivity
Apple CarPlay (wireless or wired)
Bluetooth
Phone/Media Player, Headset
